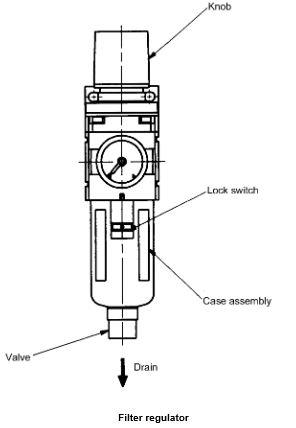

Filter Regulator

Draining filter regulator

1. When the fluid deposits, open the valve at the bottom of filter regulator to drain the fluid. After draining the fluid, close the valve.
2. Cover the valve with proper cloth during draining, as the fluid will splash.

Cleaning filter regulator

1. Remove the case assembly. Release the lock switch, then rotate the case assembly to remove downwards.
2. Wash the case assembly and the filter with the water.
3. Replace the filter if it is extremely dirty.
4. After cleaning, insert the case assembly to the home position, and rotate it until the lock switch clicks.
