Periodic Maintenance - ATC Arm Unit

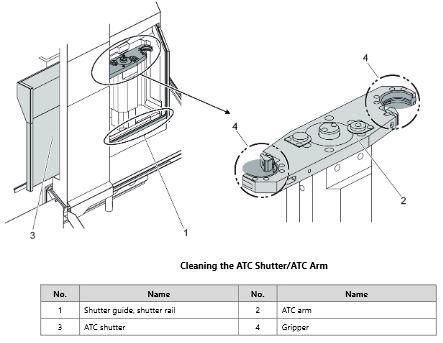

Cleaning the ATC Shutter/ ATC Arm

1. Turn OFF the power supply.
2. Inspect the following tool locations, remove any adhering chips.
   • ATC shutter [3]
   • Shutter guide, shutter rail [1]
   • ATC arm [2], gripper [4]
