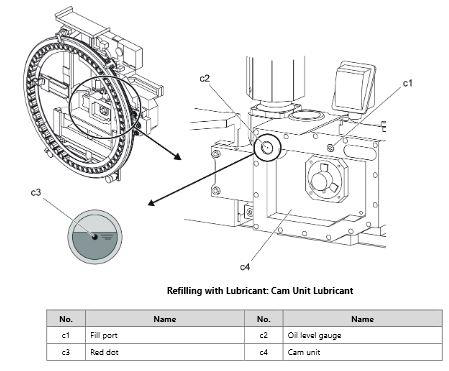

Refilling with Oil: Cam Unit Lubricant

1. Turn OFF the power supply.
2. Remove the plug of the fill port [c1] of the cam unit [c4].
3. Refill with lubricant through the fill port [c1] until the oil level reaches above the red dot [c3] on the oil level gauge [c2].
4. Mount the plug of the fill port [c1].
